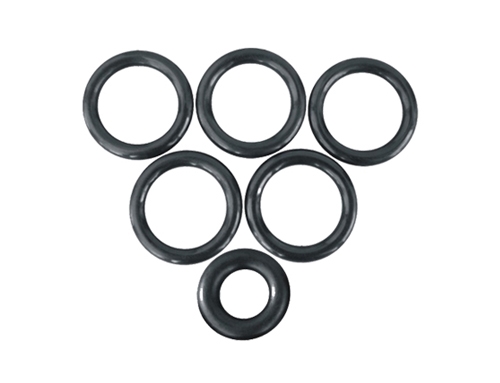

O-ring
Product Description
O-ring seals series:
The seals product is the product with comprehensive performance and high production and technical requirements.By the scientific formula and design、using Imported high-quality materials、adopting advanced production technology、conducting strict and scientific management of manufacturing, we can ensure that our products are provided with high product size precision、good performance、high strength、high tear resistance、low deformation、acid and alkali resistance、aging resistance、oil resistance、heat resistance.These products are widely used in the battery industry、electronic industry、mechanical industry、textile industry etc. We have the production capability of various properties of fluorine rubber、silicone rubber、nitrile rubber、 EPDM to meet the requirements of different users.
| specifications table (O-rings) | ||
| outside ¢ mm | within ¢ mm | high mm |
| 6.5 | 2.5 | 2 |
| 7 | 4 | 1.5 |
| 7 | 3.2 | 1.9 |
| 7.2 | 3.6 | 1.8 |
| 7.5 | 2.5 | 2.5 |
| 7.6 | 3.8 | 1.9 |
| 7.7 | 3.5 | 2.1 |
| 8 | 4 | 2 |
| 10 | 6 | 2 |
| 10.5 | 6.5 | 2 |
| 10.6 | 6.4 | 2.1 |
| 10.6 | 6.8 | 1.9 |
| 10.9 | 6.5 | 2.2 |
| 11 | 7.2 | 1.9 |
| 12.2 | 7.5 | 2.35 |
| 12.3 | 7 | 2.65 |
| 12.5 | 7.5 | 2.5 |
| 12.6 | 7 | 2.8 |
| 12.6 | 8.8 | 1.9 |
| 13.1 | 8.5 | 2.3 |
| 13.3 | 9.7 | 1.8 |
| 14 | 10 | 2 |
| 15 | 10 | 2.5 |
| 15 | 11.2 | 2 |
| 16 | 9 | 3.5 |
| 16 | 10 | 3 |
| 16.4 | 11 | 2.7 |
| 17 | 11 | 3 |
| 18 | 11 | 3.5 |
| 18 | 12 | 3 |
| 18 | 13.2 | 2.5 |
| 19.3 | 12.1 | 3.6 |
| 19.6 | 16 | 1.8 |
| 19.8 | 14.2 | 2.8 |
| 20.4 | 13.6 | 3.4 |
| 20.5 | 15.5 | 2.5 |
| 21 | 15 | 3 |
| 22 | 16 | 3 |
| 22.4 | 15.6 | 3.4 |
| 23 | 15 | 4 |
| 24 | 19 | 2.5 |
| 25 | 19 | 3 |

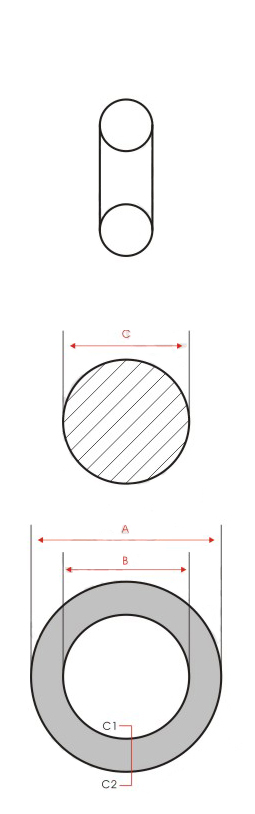

Standard Dimension = outside diameter * inside diameter *linear diameter (as shown A * B * C) .It also can be customized according to user needs.
