Safety valve
Product Description

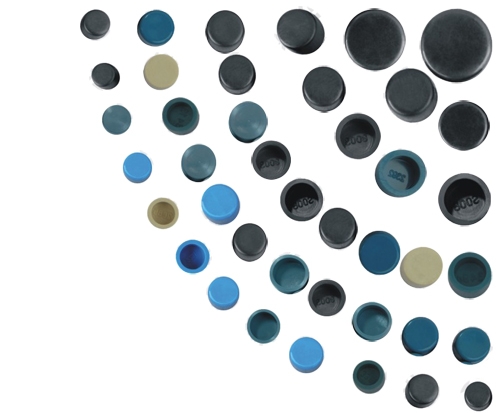

Safety valve series:
This is one of our company’s core products series, it covers dozens of products. The products conform with the strict using and requirements of VRLA Battery Industry and meet the use and needs of different customers. Our safety valve products are with high flexibility, and can keep stability of opening and closing pressure,and maintain excellent performance even in high temperature and pH conditions. We are highly praised by customers for the stability and reliability of our products.
|
Specifications (safety valve) |
||
| outside ¢ mm | within ¢ mm | high mm |
| 5 | 3.75 | 3.7 |
| 5.9 | 4.5 | 3.8 |
| 5.9 | 4.5 | 4.6 |
| 6.4 | 4.7 | 4.8 |
| 6.5 | 4.9 | 4.5 |
| 6 | 4.55 | 3.8 |
| 6 | 4.8 | 3.8 |
| 7.1 | 6.3 | 4.8 |
| 7.6 | 5.8 | 5 |
| 7.6 | 6 | 3.8 |
| 7.6 | 6 | 5.5 |
| 7.6 | 6.2 | 4.8 |
| 7.6 | 6.2 | 5.1 |
| 10 | 7.3 | 6 |
| 10 | 7.4 | 6 |
| 10 | 7.5 | 6 |
| 10 | 7.6 | 6 |
| 10 | 7.7 | 6 |
| 10 | 7.8 | 6 |
| 10 | 7.6 | 5 |
| 10 | 7.7 | 4 |
| 10 | 7.8 | 10 |
| 10.1 | 7.7 | 6.1 |
| 10.5 | 8 | 6 |
| 11 | 7.8 | 4.8 |
| 12.5 | 10.55 | 6 |
| 13.3 | 11.2 | 8 |
| 13.7 | 10.5 | 8 |
| 13.9 | 11 | 7.5 |
| 14 | 11.7 | 7.5 |
| 14 | 11.7 | 9.5 |
| 17 | 13 | 6 |
| 19.4 | 16.2 | 9 |

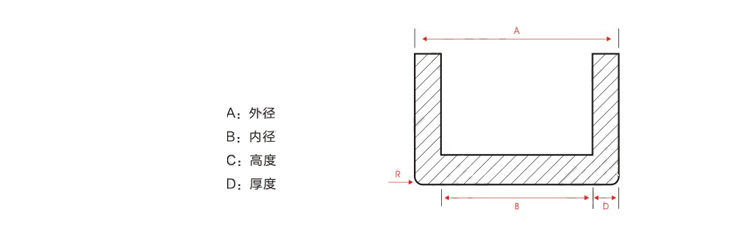

Standard Dimension = outside diameter * inside diameter *linear diameter (as shown A * B * C).It also can be customized according to user needs.
